BOBv2 Motor Controllers

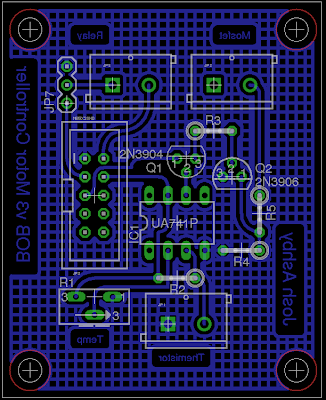

Update 7-15-09: I got a better board designed and hope to soon etch it, here it is:

BOBs v3 Motor Controller
BOB's v3 Motor Controller

I finally got around to desgining BOB’s motor controller board in a schematic:

JP1 is the thermistor; JP3 is the mosfet control conector; JP5 is the relay control conector
JP1 is the thermistor; JP3 is the mosfet control connector; JP5 is the relay control connector

The caption says it all, JP1 is the thermistor; JP3 is the mosfet control connector; JP5 is the relay control connector. The picture should be linked to the picasa album with the board and schematic.
